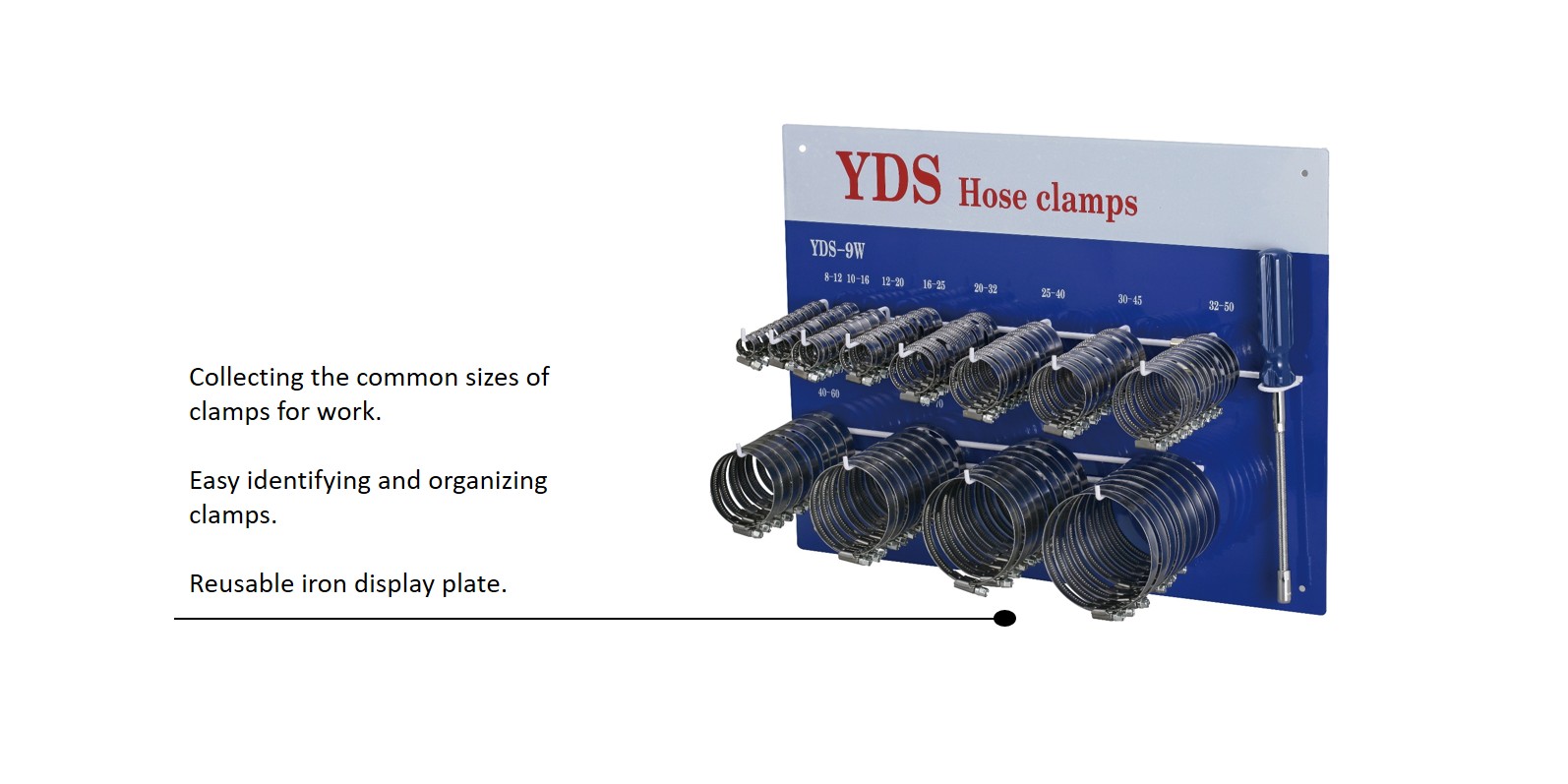

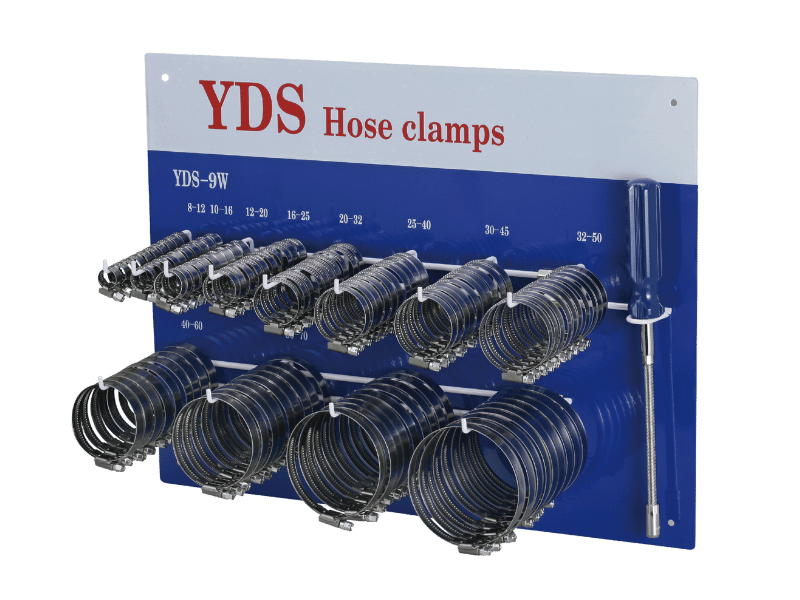

EVEREON hose clamp display is collected by common sizes of hose clamps and 1 nut driver in per display. Clamp display is reusable and fixes on wall or cabinet for easy identifying and organizing clamps. This clamp display is suitable for industrial machinery, hardware, water plumbing, automotive, agriculture, home and gardening applications.
For further information or products details, please feel free to contact us.
Product Description
Clamp Kit Detail
| Clamp Type | Material | Description | |
|---|---|---|---|
|
Worm Gear Hose Clamp |
|
W2 (430 S.S.) W4 (304 S.S.) |
120 pcs Embossed Worm Gear Hose Clamps + 1 Piece Nut Driver + 1 Set Display |
|
Mini & Worm Drive Hose Clamp |
|
430 S.S.Band All 304 S.S. |
120 pcs Mini & Worm Drive Hose Clamps + 1 Piece Nut Driver + 1 Set Display |
|
Mini & High Torque Hose Clamp |
|
All 304 S.S. | 120 pcs Mini & High Torque Hose Clamps + 1 Piece Nut Driver + 1 Set Display |
Application
Industrial Machinery, Hardware, Water Plumbing, Automotive, Agriculture, Home and Gardening
| Clamp Size | Q'TY | Band Width(mm) | Band Width(inch) | CR:Min. (mm) | CR:Max. (mm) | CR:Min. (inch) | CR:Max. (inch) |
|---|---|---|---|---|---|---|---|
| 12mm | 10 | 9 | 0.35 | 8 | 12 | 5/16 | 1/2 |
| 16mm | 10 | 9 | 0.35 | 10 | 16 | 3/8 | 5/8 |
| 20mm | 10 | 9 | 0.35 | 12 | 20 | 1/2 | 3/4 |
| 25mm | 10 | 9 | 0.35 | 16 | 25 | 5/8 | 1 |
| 32mm | 10 | 9 | 0.35 | 20 | 32 | 3/4 | 1-1/4 |
| 40mm | 10 | 9 | 0.35 | 25 | 40 | 1 | 1-5/8 |
| 45mm | 10 | 9 | 0.35 | 30 | 45 | 1-3/16 | 1-3/4 |
| 50mm | 10 | 9 | 0.35 | 32 | 50 | 1-1/4 | 2 |
| 60mm | 10 | 12 | 0.47 | 40 | 60 | 1-5/8 | 2-3/8 |
| 70mm | 10 | 12 | 0.47 | 50 | 70 | 2 | 2-3/4 |
| 80mm | 10 | 12 | 0.47 | 60 | 80 | 2-3/8 | 3-1/8 |
| 90mm | 10 | 12 | 0.47 | 70 | 90 | 2-3/4 | 3-1/2 |
CR=Clamping Range / PN=Part Number
120 Piece Mini & Worm Drive Hose Clamp Size List / Mini & High Torque Hose Clamp Size List| SAE Size | Q'TY | Band Width(mm) | Band Width(inch) | CR:Min. (inch) | CR:Max. (inch) | CR:Min. (mm) | CR:Max. (mm) |
|---|---|---|---|---|---|---|---|
| 4 | 10 | 9 | 0.35 | 5/16 | 5/8 | 8 | 16 |
| 5 | 10 | 9 | 0.35 | 7/16 | 3/4 | 11 | 20 |
| 6 | 10 | 9 | 0.35 | 1/2 | 7/8 | 12 | 23 |
| 10 | 10 | 12.7 | 0.5 | 9/16 | 1-1/16 | 14 | 27 |
| 12 | 10 | 12.7 | 0.5 | 11/16 | 1-1/4 | 17 | 32 |
| 16 | 10 | 12.7 | 0.5 | 13/16 | 1-1/2 | 21 | 38 |
| 20 | 10 | 12.7 | 0.5 | 13/16 | 1-3/4 | 21 | 44 |
| 24 | 10 | 12.7 | 0.5 | 1 | 2 | 25 | 51 |
| 28 | 10 | 12.7 | 0.5 | 1-1/4 | 2-1/4 | 32 | 57 |
| 32 | 10 | 12.7 | 0.5 | 1-1/2 | 2-1/2 | 38 | 63 |
| 36 | 10 | 12.7 | 0.5 | 1-3/4 | 2-3/4 | 44 | 70 |
| 48 | 10 | 12.7 | 0.5 | 2-1/2 | 3-1/2 | 64 | 89 |
CR=Clamping Range / PN=Part Number
