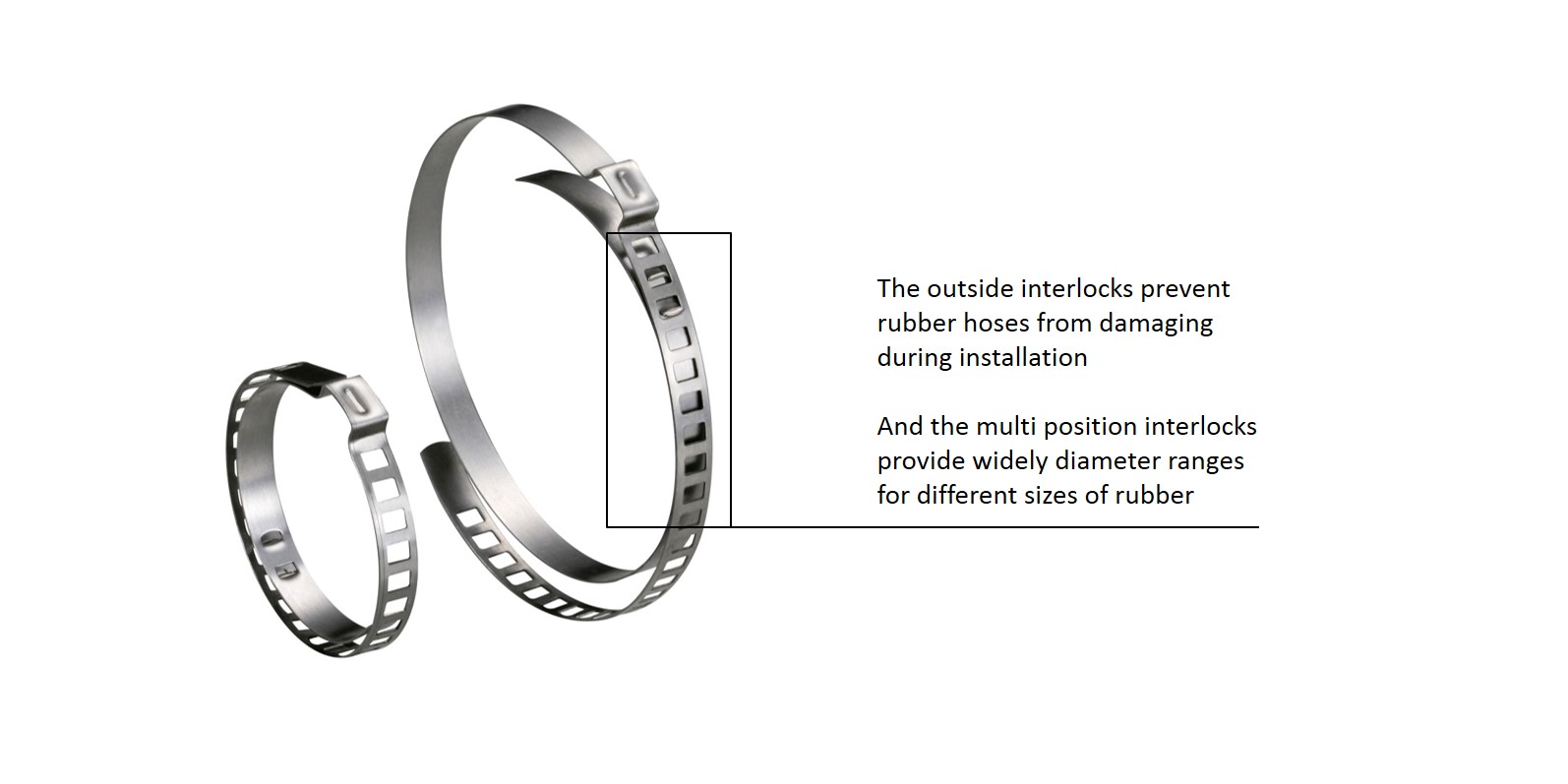

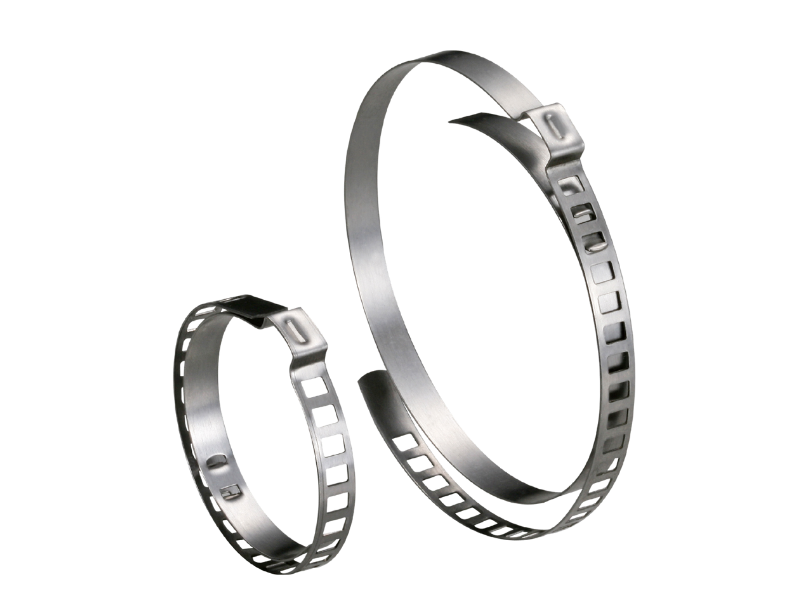

EVEREON CV boot clamp is specific used in CV (Constant-Velocity) joint boot of universal automobiles. The outward hooks prevent rubber hoses from damaging during installation. And the multi position interlocks provide widely diameter ranges for different sizes of rubber. Clamps are made of AISI 430 stainless steel material offering a economy clamp.
For further information or products details, please feel free to contact us.
Product Description
Material
| evereon Part No. | Length Size | Band Thickness x Width | Material |
|---|---|---|---|
|
47425-70245 |
245 mm | 0.5 x 7.0 mm | AISI 430 stainless steel |
|
47425-70405 |
405 mm | 0.5 x 7.0 mm | AISI 430 stainless steel |
Application
Automotive
| Length Size | CR:Min(mm) | CR:Max(mm) | CR:Min(inch) | CR:Max(inch) | Band Thickness x Width (mm) | Band Thickness x Width (inch) | Band Length (mm) | Band Length (inch) | PN:430 Stainless Steel |
|---|---|---|---|---|---|---|---|---|---|
| 245 | 32 | 58 | 1.26 | 2.28 | 0.5 x 7.0 | 0.020 x 0.276 | 245 | 9.65 | 47425-70245 |
| 405 | 73 | 108 | 2.87 | 4.25 | 0.5 x 7.0 | 0.020 x 0.276 | 405 | 15.94 | 47425-70405 |
CR=Clamping Range / PN=Part Number
Packaging
EVEREON CV boot clamps are available in bulk packaging, polybag packaging, and customer designed packaging. There is NO logo and brand on our regular boxes. We can provide customer barcode and private label for all packaging. Customer designed packaging are available on request.
Bulk packaging : 4000 clamps per carton for small sizes, 2000 clamps per carton for large sizes.
Polybag packaging : each set polybags packaging are available in 100 clamps or customer packaging.
Installing Tools
The pliers tool (PN: 80013-00) helps your work easily.
