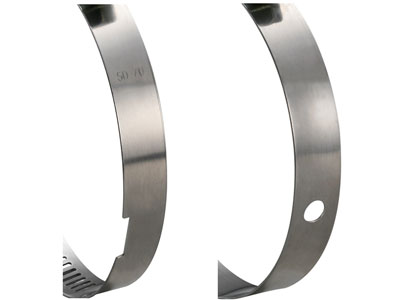

EVEREON provides customized notch band or hole band for increased your assembling work efficient and standardized. The worm gear hose clmaps and worm drive hose clamps offer this customized design band .
For more details about customized band clamps, please feel free to contact us to create your OWN clamps with notch or hole band.
Product Description
Clamp Options
EVEREON offers 2 clamp options to process customerized notch or hole band.

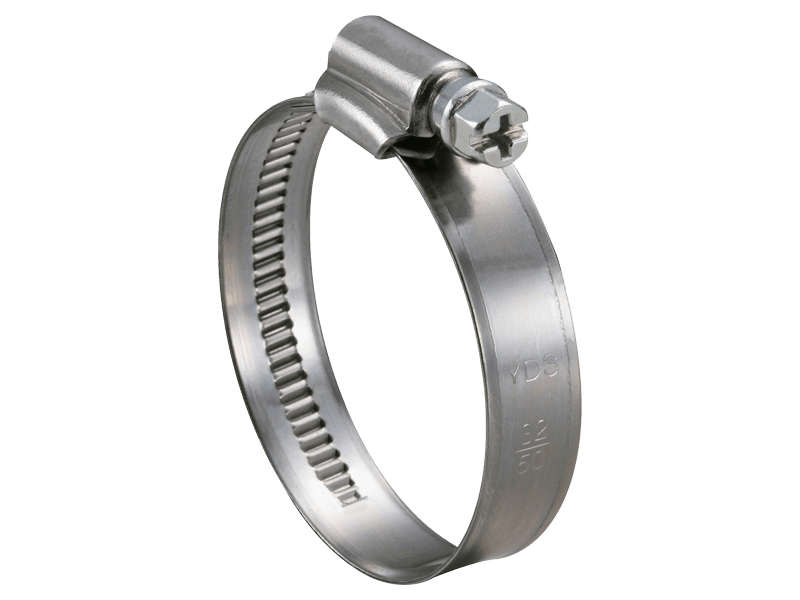

Worm Drive Hose Clamp

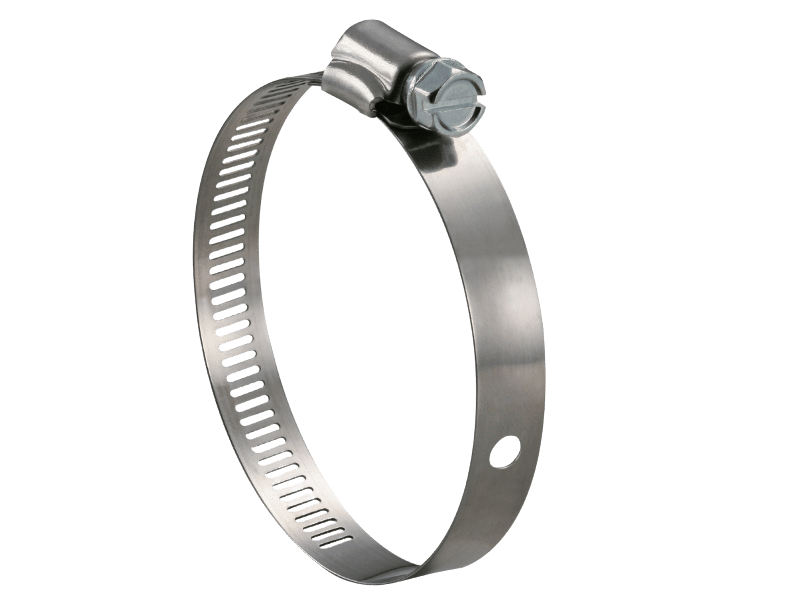

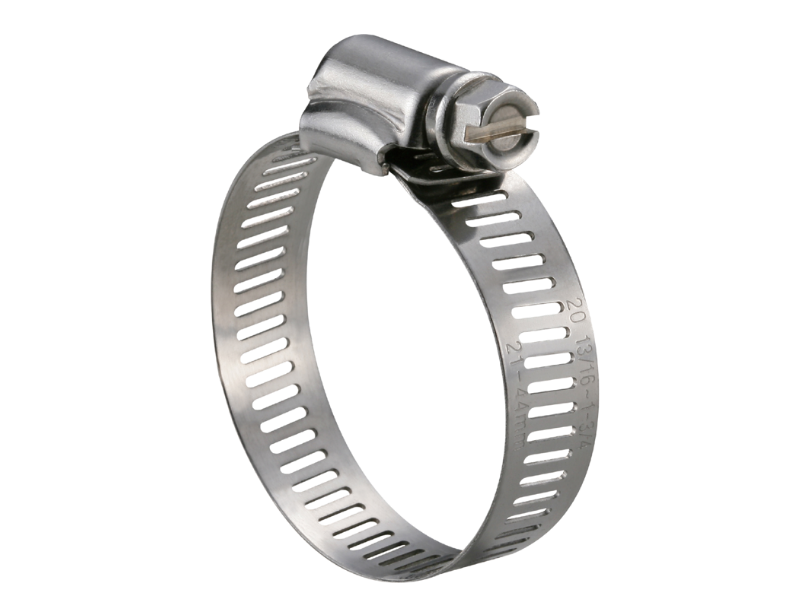

Worm Gear Hose Clamp
Material
| Clamp Type | Material Type | BAND | HOUSING | SCREW |
|---|---|---|---|---|
| Worm Gear Hose Clamp | W2 (430 S.S.) | AISI 430 Stainless Steel | AISI 430 Stainless Steel | Plated Carbon Steel |
| Worm Gear Hose Clamp | W4 (304 S.S.) | AISI 304 Stainless Steel | AISI 304 Stainless Steel | AISI 304 Stainless Steel |
| Worm Drive Hose Clamp | 430 S.S. Band | AISI 430 Stainless Steel | AISI 430 Stainless Steel | Plated Carbon Steel |
| Worm Drive Hose Clamp | All 304 S.S. | AISI 304 Stainless Steel | AISI 304 Stainless Steel | AISI 304 Stainless Steel |
Tightening Torque
9mm band width worm gear hose clamps : The recommended installation torque is 3.0 Nm (26 lbf-in).
12mm band width worm gear hose clamps : The recommended installation torque is 4.0 Nm (35 lbf-in).
Worm drive hose clamps : The recommended installation torque is 5.0 Nm (44 in-lbs).
Application
Industrial Machinery, Automotive
Packaging
EVEREON hose clamp with notch/hole band packages are available in bleow packaging. There is NO logo and brand on our regular boxes. We can provide customer barcode and private label for all packaging. Customer designed packaging are available on request
Bulk packaging : According to the diameter of clamps to pack in 100 to 50 pcs per box.
Polybag packaging : each set polybags packaging are available in 2, 5, 10 clamps, or customer packaging.
Tag label packaging : each clamp is packed with 1 private label.
Installing Tools
The flexible shaft nut driver for helping your work easily.
