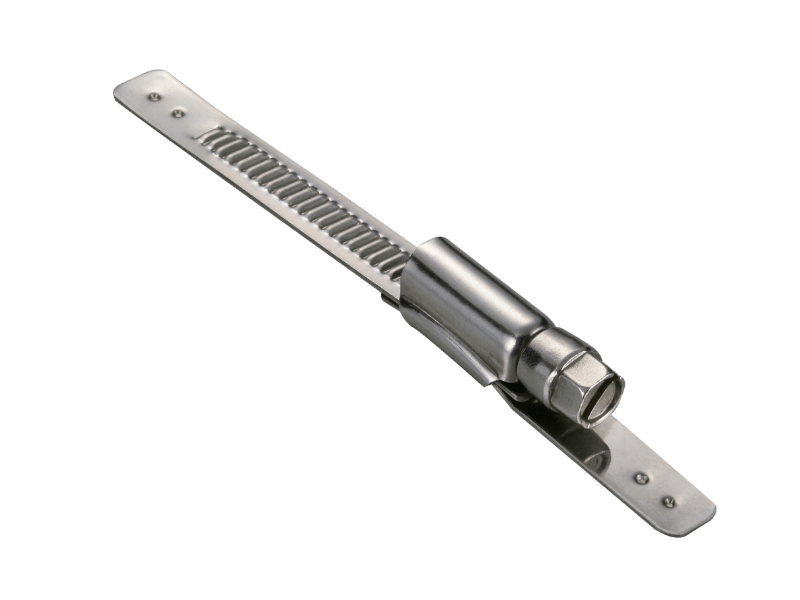

YDS stretched pipe clamp connectors are also called stretched bar clamps or Strip clamps. It is an diversification of worm gear hose clamps which are widely used in applications of chimney system, exhaust pipe system, and large diameter pipes. The material is all 304 stainless steel to provide superior corrosion resistance under outdoors and an attractive appearance on your exhaust pipe.
For further information or products details, please feel free to contact us.
Product Description
Feature
Material

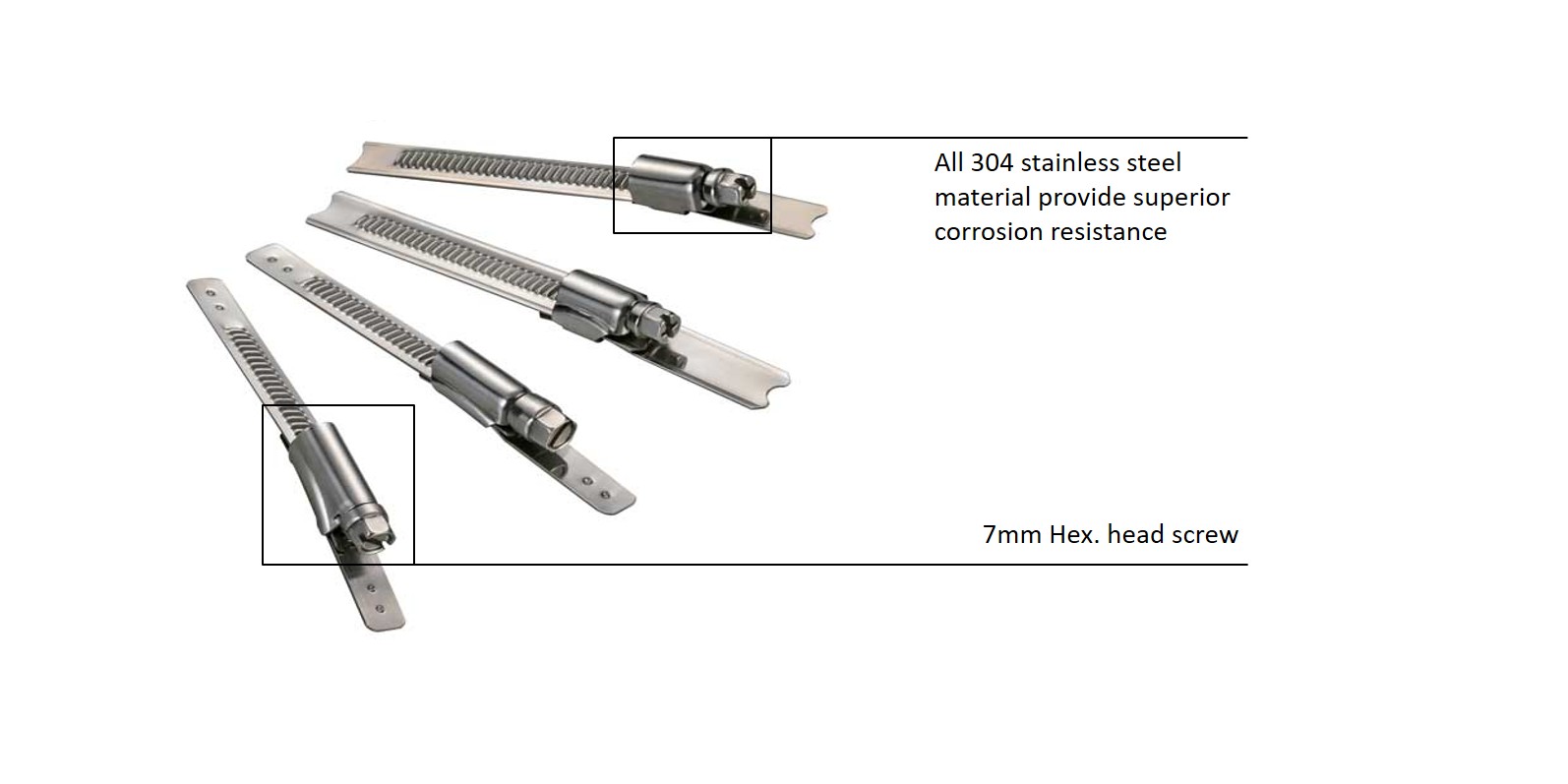

Band, housing and screw all parts are made of 304 stainless steel.
Tightening Torque
The recommended installation torque is 4.0 Nm (35 lbf-in).
Application
Chimney, Construction

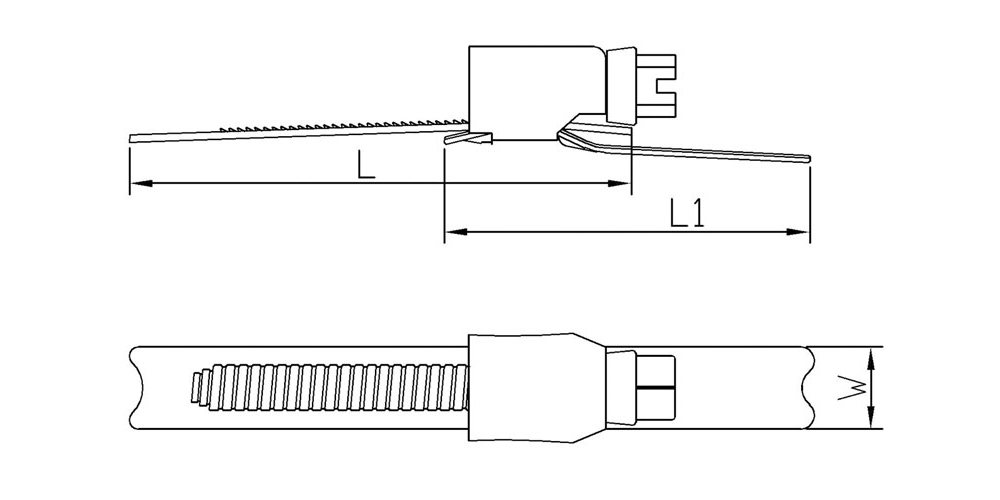

| W (mm) | L(mm) | L1(mm) | Length For Gear(mm) | PN |
|---|---|---|---|---|
| 9 | 65 | 40 | 48 | 14040-09065 |
| 9 | 90 | 40 | 74 | 14040-09090 |
| 9 | 140 | 40 | 122 | 14040-09140 |
| 12 | 90 | 55 | 74 | 14040-12090 |
CR=Clamping Range / PN=Part Number
Packaging
YDS stretched pipe clamps are packed in bulk package. There is NO logo and brand on our regular boxes. We can provide customer barcode and private label for all packaging. Customer designed packaging are available on request.
Bulk packaging : Bulk packaging: 100 clamps per box for all sizes, then shipped in cartons.
Customer designed packaging : Printing OEM package.
Installing Tools
The flexible shaft nut driver (PN: 80011) for helping your work easily.
