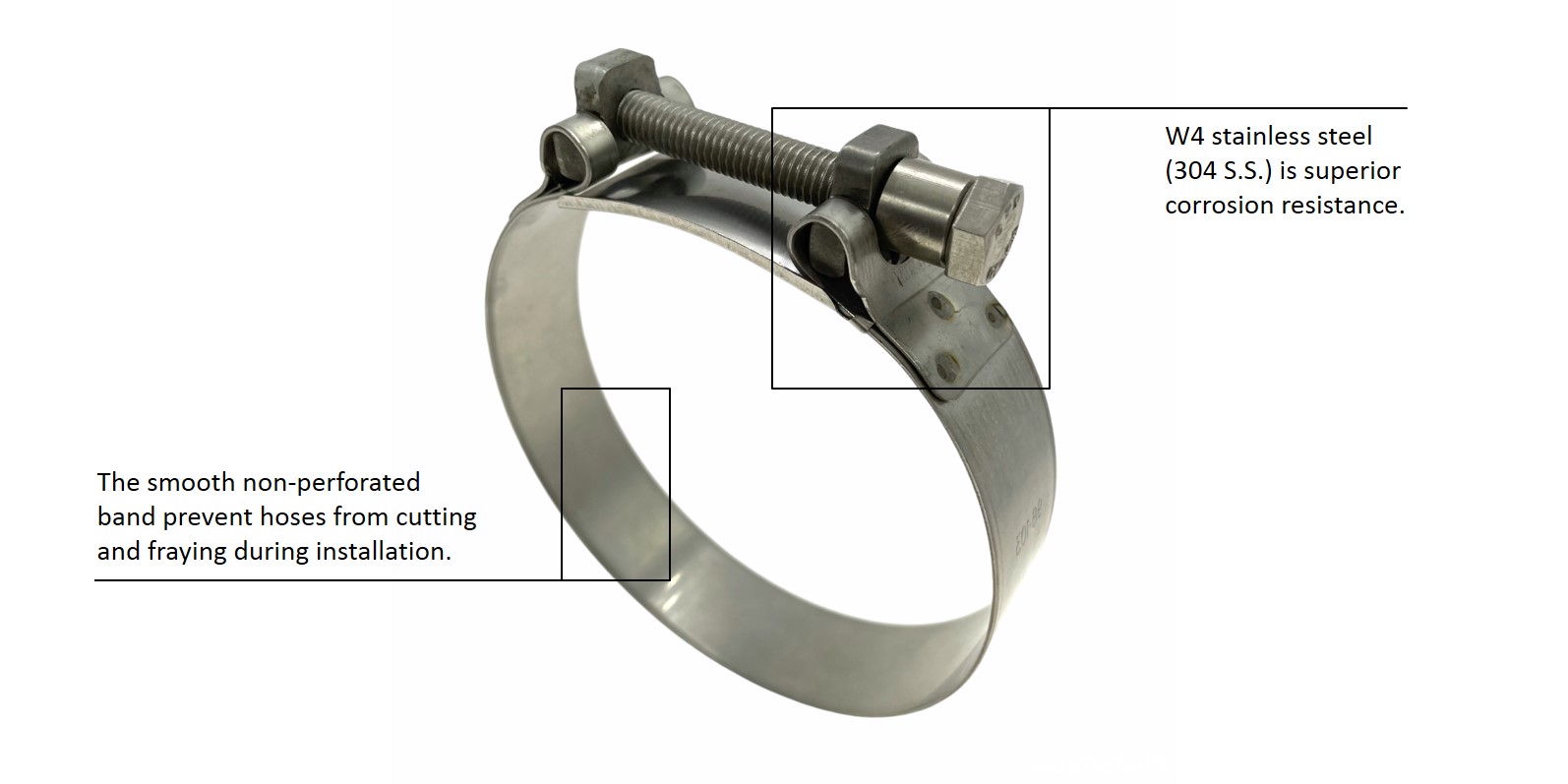

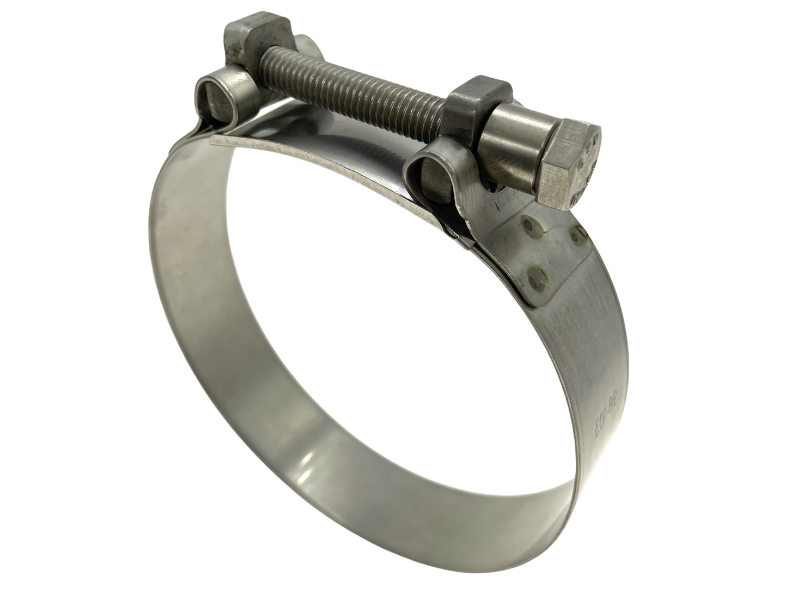

EVEREON TT high-pressure heavy duty clamps provide reliable pipe connections. Designed for using in applications of industrial machinery, automotive, trucks, agriculture, and heavy duty equipment. The smooth non-perforated band prevent hoses from cutting and fraying during installation. And the no steps or gaps inside band provides a safe seal. TT high-pressure heavy duty clamps are made of 304 stainless steel which are superior corrosion resistance.
For further information or products details, please feel free to contact us.
Product Description
Feature
Material
| evereon Part No. | Material Type | BAND | SCREW | TRUNNION |
|---|---|---|---|---|
| 50040- series | All 304 S.S. | AISI 304 Stainless Steel | AISI 304 Stainless Steel | AISI 304 Stainless Steel |
Application
Heavy Duty, Industrial Machinery, Agriculture, Automotive
| Band Width | Screw | CR:Min. (mm) | CR:Max. (mm) | CR:Min. (inch) | CR:Max. (inch) | PN:W4 (304 S.S.) |
|---|---|---|---|---|---|---|
| 19mm | 10mm | 17 | 19 | 11/16 | 3/4 | 50040-19019 |
| 19mm | 10mm | 20 | 22 | 13/16 | 7/8 | 50040-19022 |
| 19mm | 10mm | 23 | 25 | 7/8 | 1 | 50040-19025 |
| 19mm | 10mm | 26 | 28 | 1-1/32 | 1-1/8 | 50040-19028 |
| 19mm | 10mm | 29 | 31 | 1-1/8 | 1-1/4 | 50040-19031 |
| 19mm | 10mm | 32 | 35 | 1-1/4 | 1-3/8 | 50040-19035 |
| 19mm | 10mm | 36 | 39 | 1-7/16 | 1-9/16 | 50040-19039 |
| 19mm | 10mm | 40 | 43 | 1-9/16 | 1-11/16 | 50040-19043 |
| 22mm | 13mm | 44 | 47 | 1-3/4 | 1-7/8 | 50040-22047 |
| 22mm | 13mm | 48 | 51 | 1-7/8 | 2 | 50040-22051 |
| 22mm | 13mm | 52 | 55 | 2-1/16 | 2-3/16 | 50040-22055 |
| 22mm | 13mm | 56 | 59 | 2-3/16 | 2-5/16 | 50040-22059 |
| 22mm | 13mm | 60 | 63 | 2-3/8 | 2-1/2 | 50040-22063 |
| 22mm | 13mm | 64 | 67 | 2-1/2 | 2-5/8 | 50040-22067 |
| 22mm | 13mm | 68 | 73 | 2-11/16 | 2-7/8 | 50040-22073 |
| 22mm | 13mm | 74 | 79 | 2-15/16 | 3-1/8 | 50040-22079 |
| 25mm | 13mm | 80 | 85 | 3-1/8 | 3-3/8 | 50040-25085 |
| 25mm | 13mm | 86 | 91 | 3-3/8 | 3-9/16 | 50040-25091 |
| 25mm | 13mm | 92 | 97 | 3--5/8 | 3-13/16 | 50040-25097 |
| 25mm | 13mm | 98 | 103 | 3-7/8 | 4-1/16 | 50040-25103 |
| 25mm | 13mm | 104 | 112 | 4-1/8 | 4-7/16 | 50040-25112 |
| 25mm | 13mm | 113 | 121 | 4-7/16 | 4-3/4 | 50040-25121 |
| 25mm | 13mm | 122 | 130 | 4-13/16 | 5-1/8 | 50040-25130 |
CR=Clamping Range / PN=Part Number
Packaging
EVEREON TT high-pressure heavy duty clamps packages are available in bleow packaging. There is NO logo and brand on our regular boxes. We can provide customer barcode and private label for all packaging. Customer designed packaging are available on request
Bulk packaging : According to the diameter of clamps to pack in 100 to 10 pcs per box.
Polybag packaging : each set polybags packaging are available in 2, 5, 10 clamps, or customer packaging.

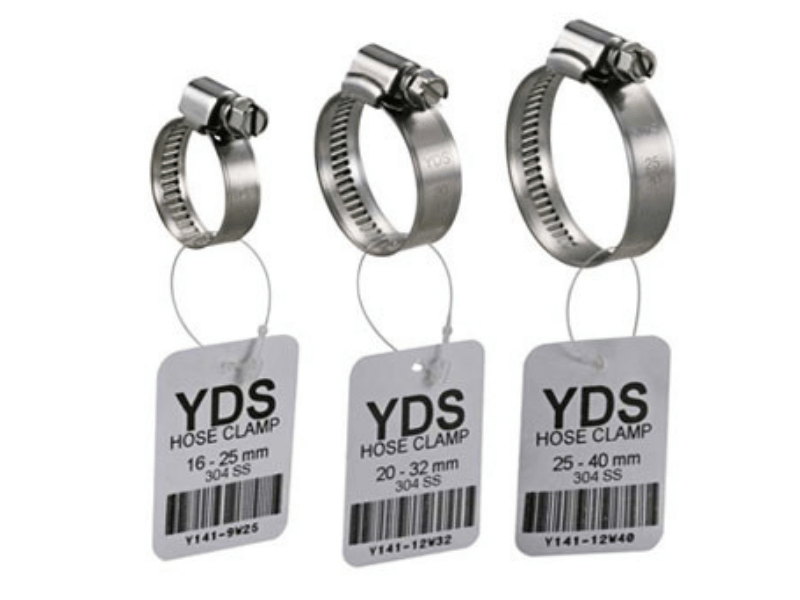

Tag label packaging : each clamp is packed with 1 private label.
Customer designed packaging : Printing OEM package.
