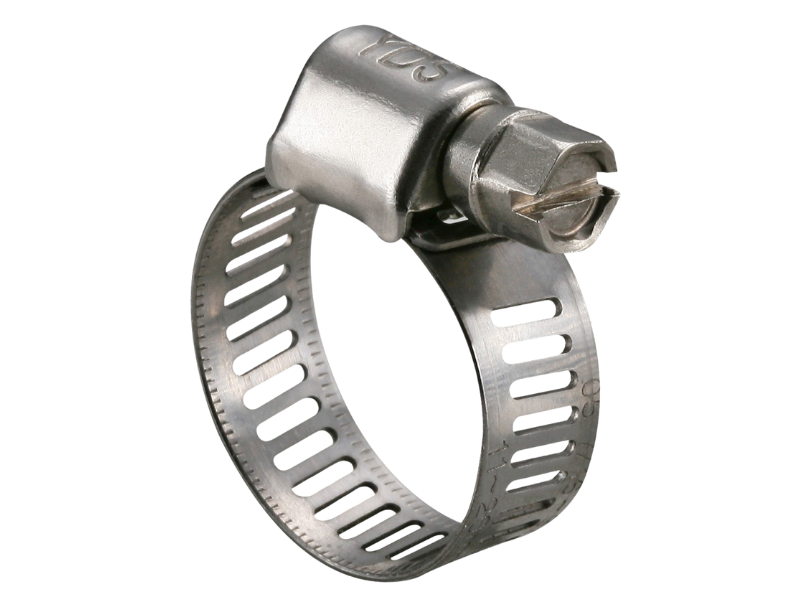

EVEREON mini hose clamps are the popular general purpose in small hoses applications and narrow areas. They also called micro gear or worm drive type M clamps.

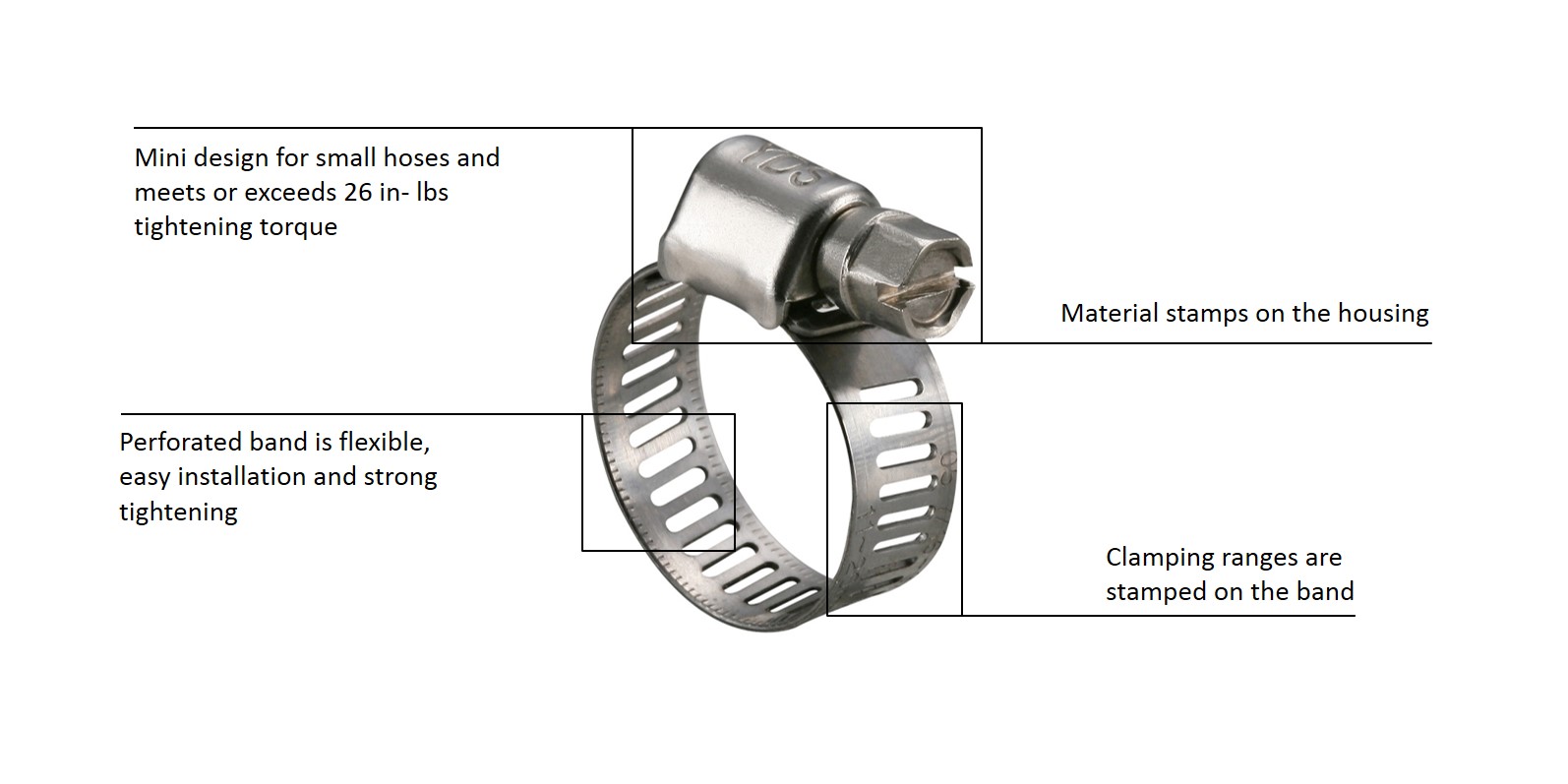

The 0.35" band width is our innovated design for higher installation torque of meeting or exceeding 26 lbf-in (3.0 Nm). Material is stamped on the housing and clamping range is stamped on the band. Mini hose clamps are available in carbon steel screw, 430 S.S. screw, all 300 S.S. and all 316 S.S. material.
For further information or products details, please feel free to contact us.
Product Description
Feature
Material
| evereon Part No. | Material Type | BAND | HOUSING | SCREW |
|---|---|---|---|---|
| 20020- series | 430 S.S. Band | AISI 430 Stainless Steel | AISI 430 Stainless Steel | Plated Carbon Steel |
| 20030- series | Carbon Steel Screw | AISI 304 Stainless Steel | AISI 304 Stainless Steel | Plated Carbon Steel |
| 20040- series | All 304 S.S. | AISI 304 Stainless Steel | AISI 304 Stainless Steel | AISI 304 Stainless Steel |
| 20050- series | All 316 S.S. | AISI 316 Stainless Steel | AISI 316 Stainless Steel | AISI 316 Stainless Steel |
| 20060- series | 430 S.S. Screw | AISI 304 Stainless Steel | AISI 304 Stainless Steel | AISI 430 Stainless Steel |
Tightening Torque
The recommended installation torque is 3.0 Nm (26 lbf-in).
Application
Industrial Machinery, Agriculture, Home & Gardening, Automotive, Water Plumbing, Marine, HVAC, Gas
| SAE SIZE | CR : Min.(inch) | CR : Max.(inch) | CR : Min.(mm) | CR : Max.(mm) | PN:430 S.S. Band with Carbon Steel Screw | PN:Carbon Steel Screw | PN:All 304 S.S.(W4) | PN : All 316 S.S.(W5) | PN:430 S.S. Screw |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 1/4 | 1/2 | 6 | 13 | 20020-09013 | 20030-09013 | 20040-09013 | 20050-09013 | 20060-09013 |
| 4 | 5/16 | 5/8 | 8 | 16 | 20020-09016 | 20030-09016 | 20040-09016 | 20050-09016 | 20060-09016 |
| 5 | 7/16 | 3/4 | 11 | 20 | 20020-09020 | 20030-09020 | 20040-09020 | 20050-09020 | 20060-09020 |
| 6 | 1/2 | 7/8 | 12 | 23 | 20030-09023 | 20030-09023 | 20040-09023 | 20050-09023 | 20060-09023 |
| 8 | 1/2 | 1 | 13 | 25 | 20020-09025 | 20030-09025 | 20040-09025 | 20050-09025 | 20060-09025 |
| 10 | 9/16 | 1-1/16 | 14 | 27 | 20020-09027 | 20030-09027 | 20040-09027 | 20050-09027 | 20060-09027 |
CR=Clamping Range / PN=Part Number
Packaging
EVEREON mini hose clamps packages are available in bleow packaging. There is NO logo and brand on our regular boxes. We can provide customer barcode and private label for all packaging. Customer designed packaging are available on request.
Bulk packaging: 100 clamps per box, then shipped in cartons. Pack of 10 : 10 clamps per box, then shipped in cartons.
Blister card packaging : each set blister card packaging with 2 or 4 clamps.
Polybag packaging : each set polybags packaging are available in 2, 5, 10 clamps, or customer packaging.

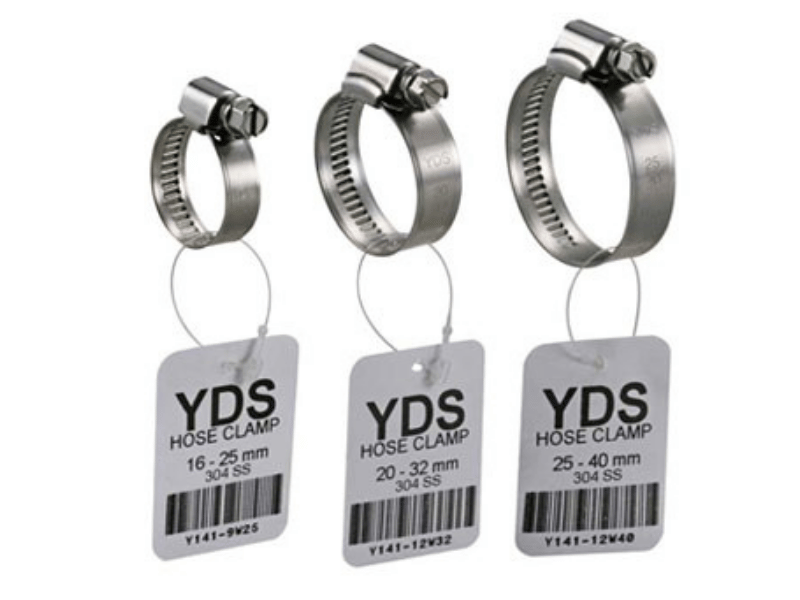

Tag label packaging : each clamp is packed with 1 private label.
Customer designed packaging : Printing OEM package.
