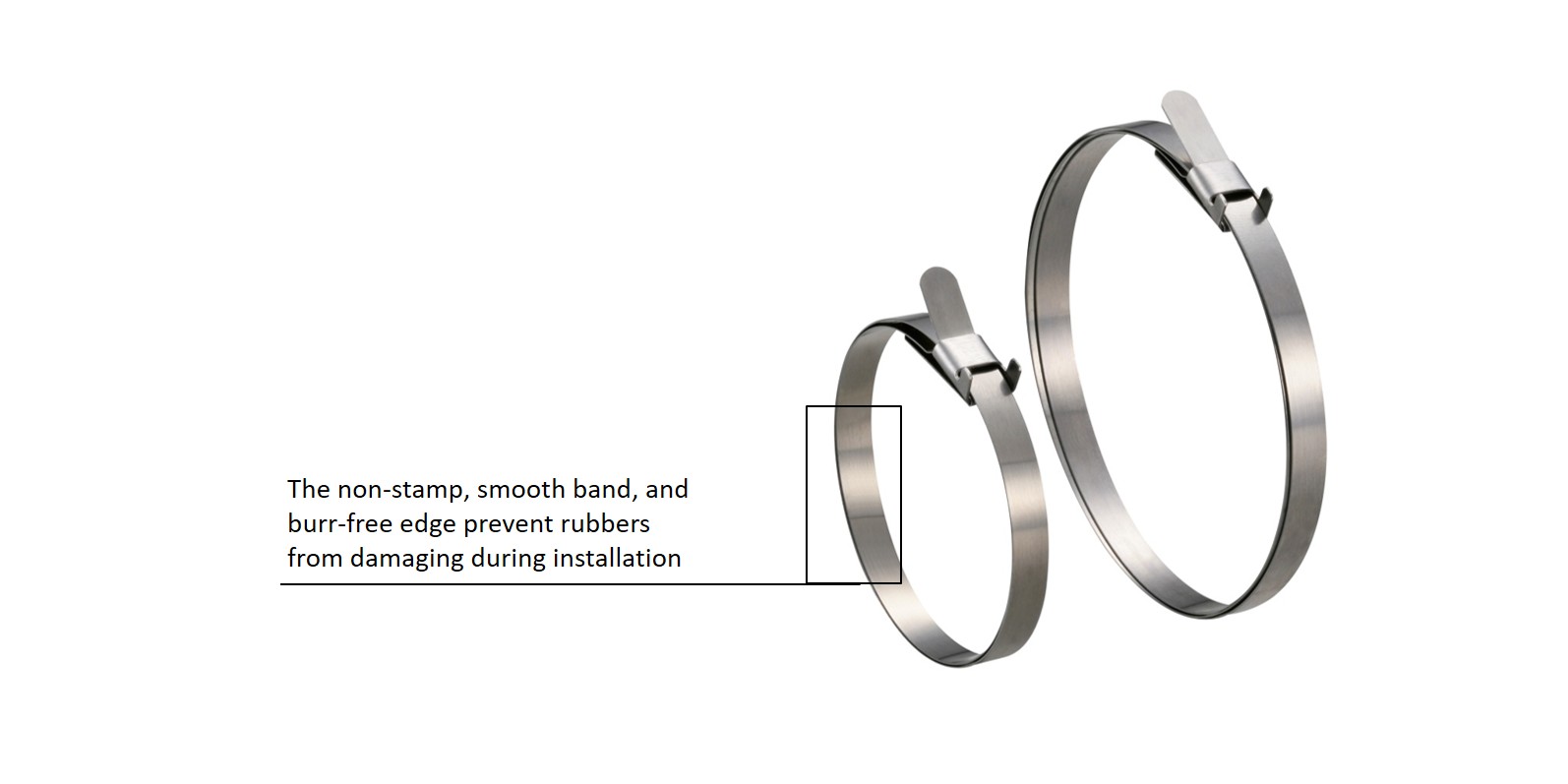

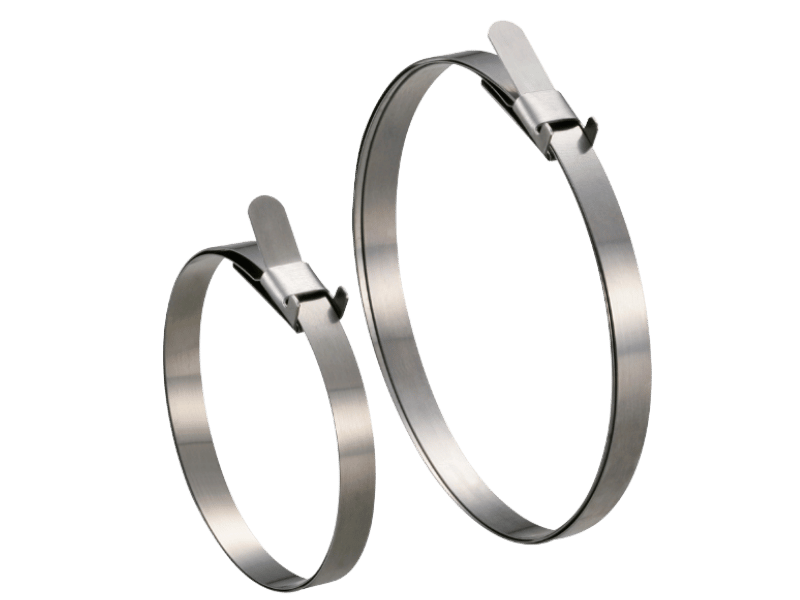

EVEREON free end CV boot clamps are specific used in CV (Constant-Velocity) Joint Boot of universal automobiles. The non-stamp, soft band, and burr-free edge prevent rubbers from damaging during installation. Clamps are made of AISI 430 stainless steel material offering a economy clamp.
For further information or products details, please feel free to contact us.
Product Description
Material
| evereon Part No. | Length Size | Band Thickness x Width | Material |
|---|---|---|---|
|
47123-60360 |
360 mm | 0.3 x 6.4 mm | AISI 430 stainless steel |
|
47123-60740 |
740 mm | 0.3 x 6.4 mm | AISI 430 stainless steel |
Application
Industrial Machinery, Automotive
| Size | Band Thickness x Width (mm) | Band Thickness x Width (inch) | Band Length (mm) | Band Length (inch) | PN:AISI 430 Stainless Steel |
|---|---|---|---|---|---|
| 360 | 0.3 x 6.4 | 0.012 x 0.252 | 360 | 14.17 | 47123-60360 |
| 740 | 0.3 x 6.4 | 0.012 x 0.252 | 740 | 29.13 | 47123-60740 |
CR=Clamping Range / PN=Part Number
Packaging
EVEREON free end CV boot clamps are available in bulk packaging, polybag packaging, and customer designed packaging. There is NO logo and brand on our regular boxes. We can provide customer barcode and private label for all packaging. Customer designed packaging are available on request.
Bulk packaging : 2000 clamps per carton for small sizes, 1000 clamps per carton for large sizes.
Polybag packaging : each set polybags packaging are available in 100 clamps or customer packaging.
Installing Tools

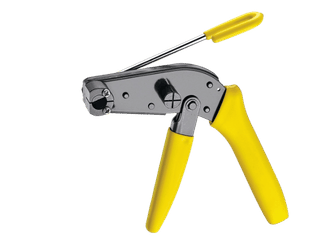

The tensioning tool (PN: 80012) helps your work easily.
