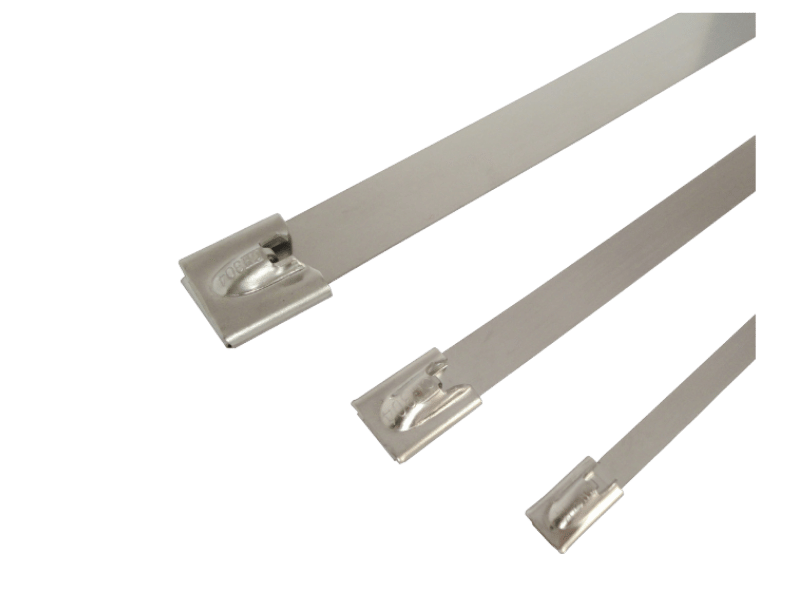

EVEREON stainless steel ball lock cable ties with a unique ball locking mechanism allows the ties to bundle up quickly. They are easy to install by tensioning tool. All 304 and 316 stainless steel material is superior corrosion resistance and durable bundle. The cable ties are suitable for automotive, machine, construction and outdoor area.
For further information or products details, please feel free to contact us.
Product Description

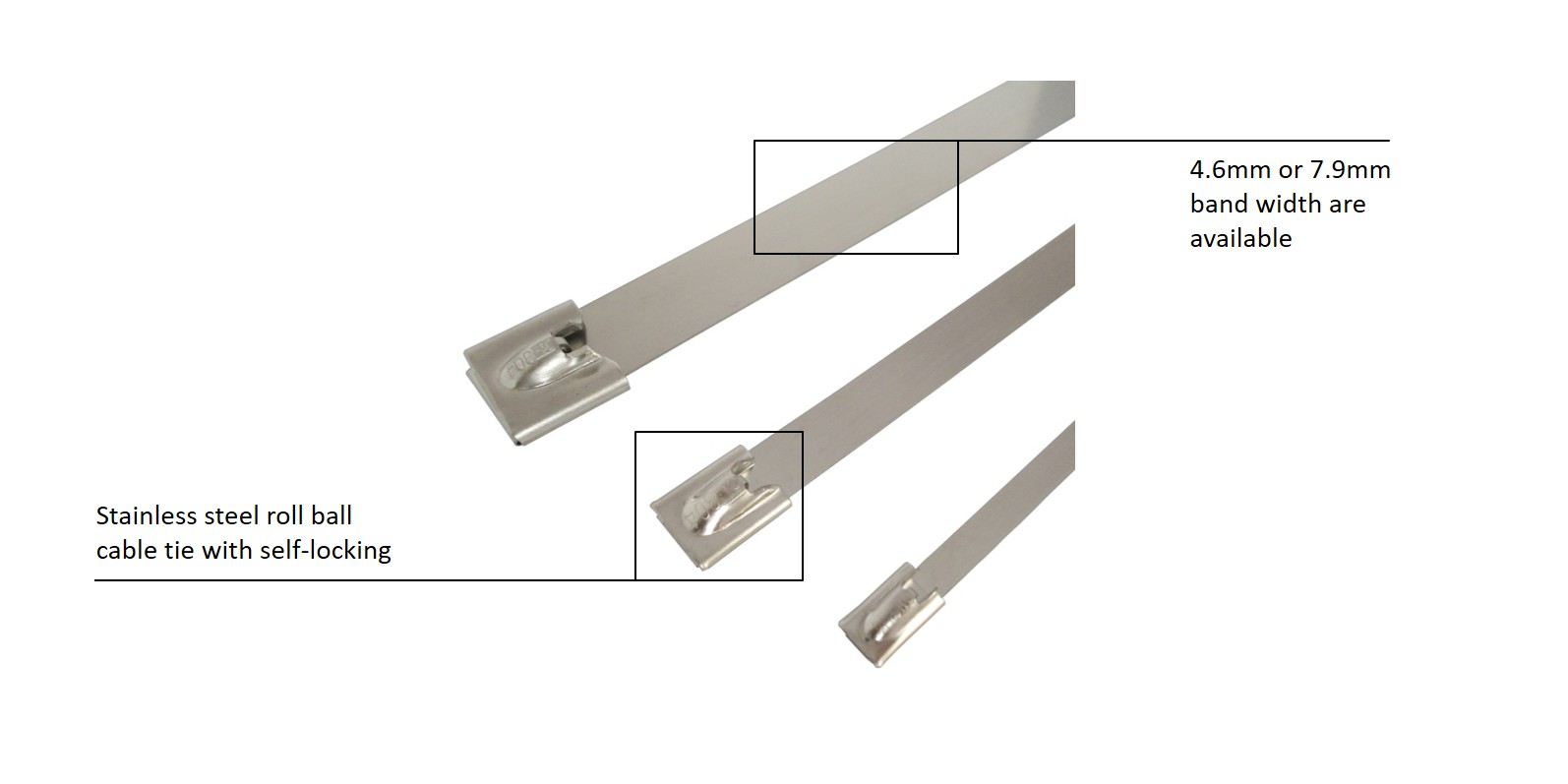

Clamp Detail
| Band Width | Material | |
|---|---|---|
|
4.6 mm |
AISI 304 stainless steel | AISI 316stainless steel |
|
7.9 mm |
AISI 304 stainless steel | AISI 316stainless steel |
Application
Industrial Machinery, Automotive, Wiring & Cables, Construction
| Band Length (mm) | Band Length (inch) | PN: AISI 304 Stainless Steel | PN : AISI 316 Stainless Steel |
|---|---|---|---|
| 127 | 5.00 | 37042-50127 | 37052-50127 |
| 152 | 5.98 | 37042-50152 | 37052-50152 |
| 201 | 7.91 | 37042-50201 | 37052-50201 |
| 266 | 10.47 | 37042-50266 | 37052-50266 |
| 300 | 11.81 | 37042-50300 | 37052-50300 |
| 362 | 14.25 | 37042-50362 | 37052-50362 |
| 521 | 20.51 | 37042-50521 | 37052-50521 |
| 679 | 26.73 | 37042-50679 | 37052-50679 |
CR=Clamping Range / PN=Part Number
Band Width : 7.9mm (0.31 inch)| Band Length (mm) | Band Length (inch) | PN: AISI 304 Stainless Steel | PN : AISI 316 Stainless Steel |
|---|---|---|---|
| 127 | 5.00 | 37042-80127 | 37052-80127 |
| 152 | 5.98 | 37042-80152 | 37052-80152 |
| 201 | 7.91 | 37042-80201 | 37052-80201 |
| 266 | 10.47 | 37042-80266 | 37052-80266 |
| 300 | 11.81 | 37042-80300 | 37052-80300 |
| 362 | 14.25 | 37042-80362 | 37052-80362 |
| 521 | 20.51 | 37042-80521 | 37052-80521 |
| 679 | 26.73 | 37042-80679 | 37052-80679 |
CR=Clamping Range / PN=Part Number
Packaging
EVEREON ball lock cable ties are available in polybag packaging and customer designed packaging. There is NO logo and brand on our regular boxes. We can provide customer barcode and private label for all packaging. Customer designed packaging are available on request.
Polybag packaging : 100 pcs cable ties in per polybag or customer packaging, then packed in shipping cartons.
Installing Tools

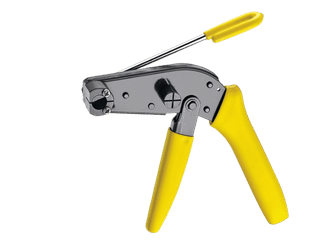

The tensioning tool (PN: 80014) helps your work easily.
