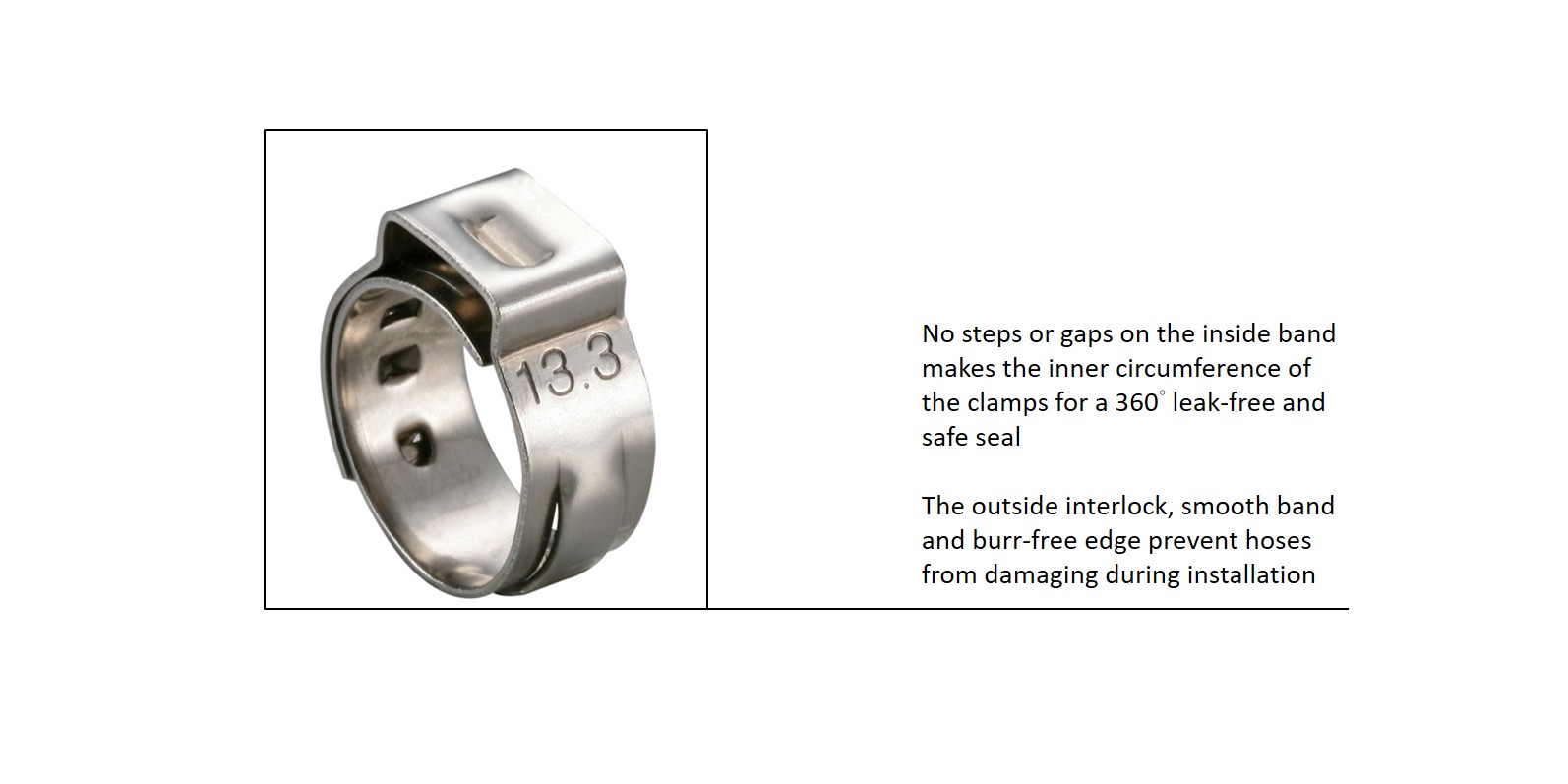

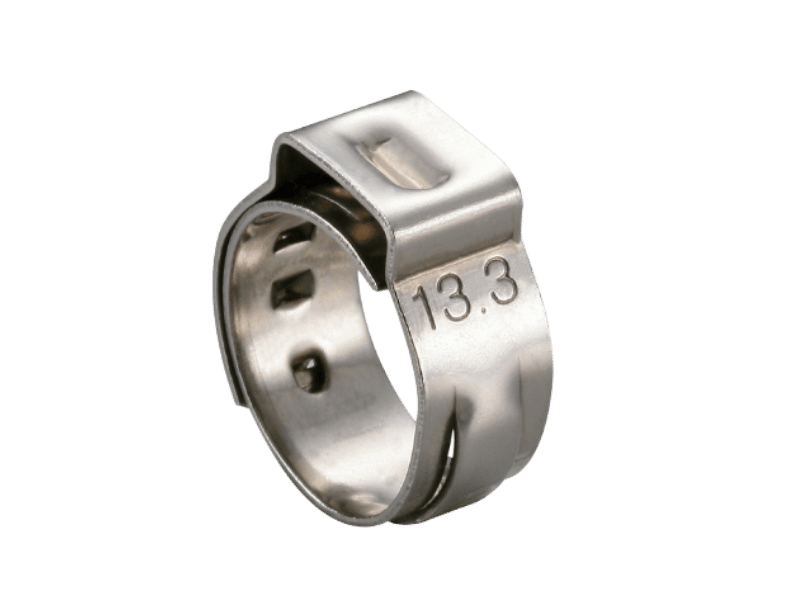

EVEREON single ear clamps are fast and easy to installation. The no steps or gaps on the inside band makes the inner circumference of the clamps for a 360° leak-free and safe seal. Plus, the outside interlock, smooth band and burr-free edge prevent hoses from damaging during installation. Ear clamps are made of 304 stainless steel which are superior corrosion resistance.
For further information or products details, please feel free to contact us.
Product Description
Material
| evereon Part No. | Material | Clamping Range | Band Thickness x Width |
|---|---|---|---|
|
40045- series |
All 304 stainless steel | 8.7 - 11.3 mm | 0.5 x 5.0 mm |
|
40046- series |
All 304 stainless steel | 13.3 - 25.6 mm | 0.6 x 7.0 mm |
Application
Industrial Machinery, Automotive, Water Plumbing, Small and low pressure hoses
| SIZE | CR:Min(mm) | CR:Max(mm) | CR:Min(inch) | CR:Max((inch) | PN |
|---|---|---|---|---|---|
| 8.7 | 7 | 8.7 | 0.28 | 0.34 | 40045-50087 |
| 10 | 8.3 | 10 | 0.33 | 0.39 | 40045-50100 |
| 10.5 | 8.8 | 10.5 | 0.35 | 0.41 | 40045-50105 |
| 11.3 | 9.6 | 11.3 | 0.38 | 0.44 | 40045-50113 |
CR=Clamping Range / PN=Part Number
Band Thickness x Width: 0.6 x 7mm (0.024 x0.276 inch)| SIZE | CR:Min(mm) | CR:Max(mm) | CR:Min(inch) | CR:Max((inch) | PN |
|---|---|---|---|---|---|
| 13.3 | 10.8 | 13.3 | 0.43 | 0.52 | 40046-70133 |
| 15.3 | 12.8 | 15.3 | 0.50 | 0.60 | 40046-70153 |
| 17.0 | 14.5 | 17.0 | 0.57 | 0.67 | 40046-70170 |
| 18.5 | 15.3 | 18.5 | 0.62 | 0.73 | 40046-70185 |
| 19.8 | 16.6 | 19.8 | 0.65 | 0.78 | 40046-70198 |
| 21.0 | 17.8 | 21.0 | 0.70 | 0.83 | 40046-70210 |
| 22.6 | 19.4 | 22.6 | 0.76 | 0.89 | 40046-70226 |
| 24.1 | 20.9 | 24.1 | 0.82 | 0.95 | 40046-70241 |
| 25.6 | 22.4 | 25.6 | 0.88 | 1.01 | 40046-70256 |
CR=Clamping Range / PN=Part Number
Packaging
EVEREON single ear hose clamps are available in polybag packaging and customer designed packaging. There is NO logo and brand on our regular boxes. We can provide customer barcode and private label for all packaging. Customer designed packaging are available on request.
Polybag packaging : 100 ear clamps per polybag, or customer packaging.
Installing Tools
The pliers tool (PN: 80013) helps your work easily.
