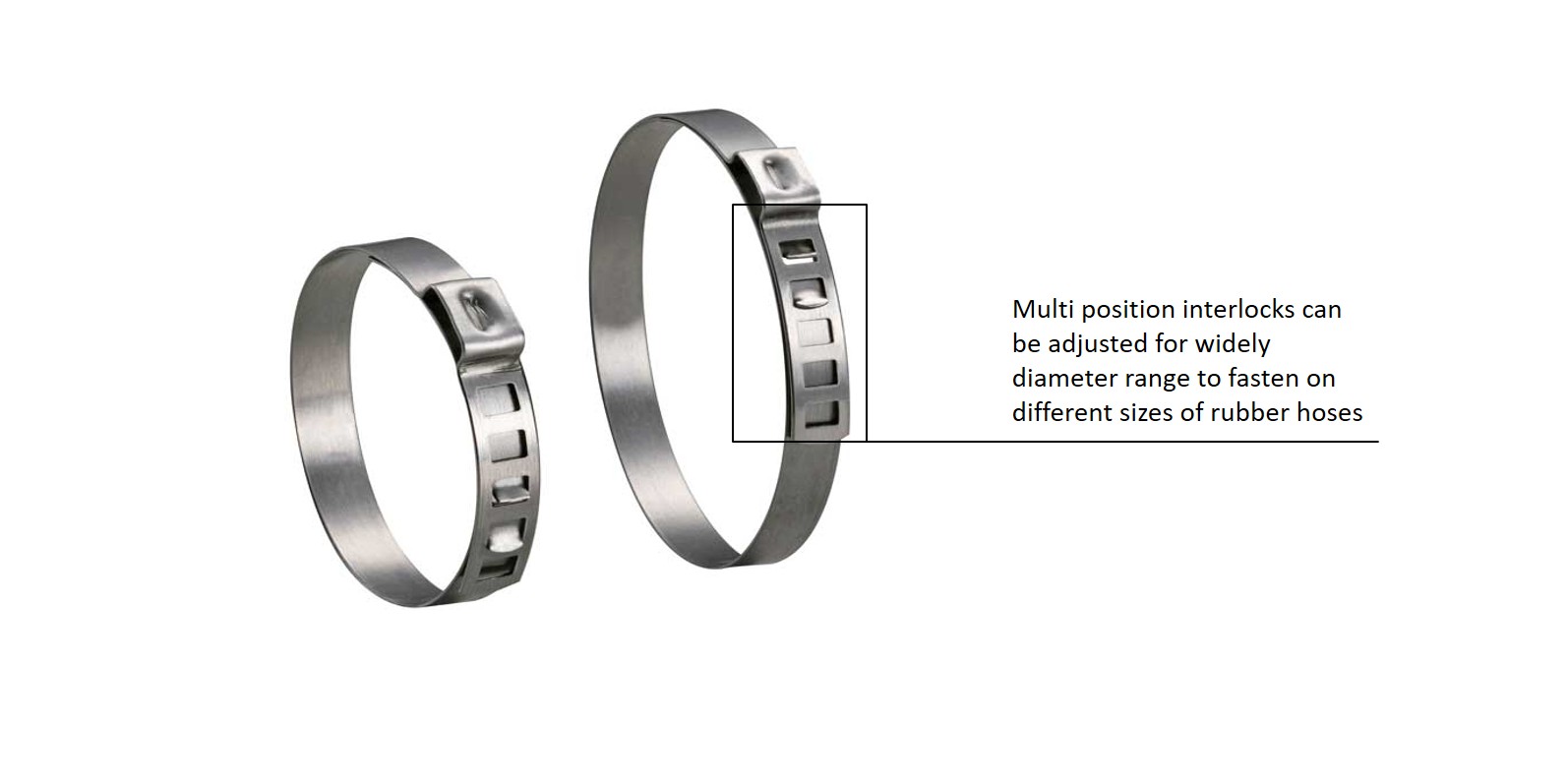

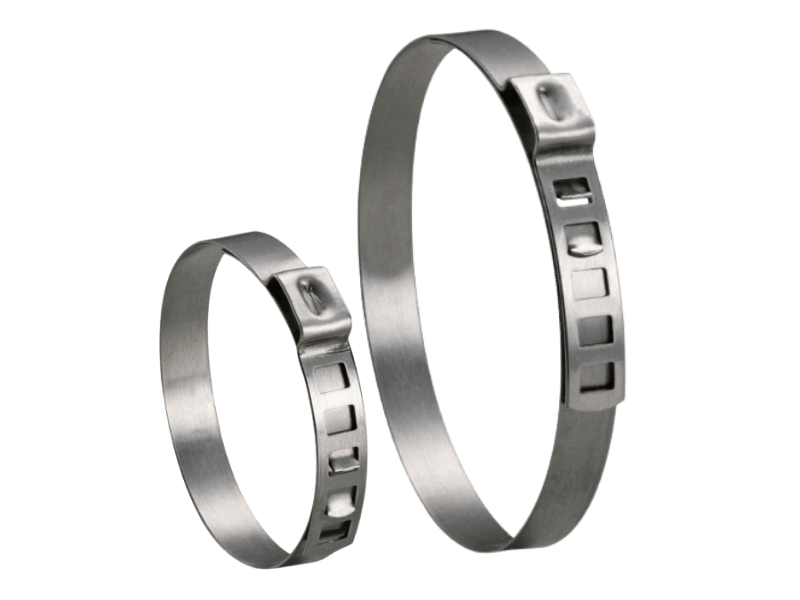

EVEREON adjustable ear clamps are fast and easy to installation. The diameter of this clamps can be adjusted by the multi position interlock for widely diameter range for different size of hoses. The outside interlock, smooth band and burr-free edge prevent hoses from damaging during installation. Adjustable ear clamps are available in AISI 430 and 304 stainless steel.
For further information or products details, please feel free to contact us.
Product Description
Material
| Band Width. | Material | |
|---|---|---|
|
7.0 mm |
AISI 430 stainless steel | AISI 304 stainless steel |
|
8.0 mm |
AISI 430 stainless steel | AISI 304 stainless steel |
Application
Industrial Machinery, Automotive
| SIZE | CR:Min(mm) | CR:Max(mm) | CR:Min(inch) | CR:Max((inch) |
|---|---|---|---|---|
| 30 | 22 | 30 | 0.866 | 1.181 |
| 32 | 24 | 32 | 0.945 | 1.260 |
| 35 | 27 | 35 | 1.063 | 1.378 |
| 40 | 32 | 40 | 1.260 | 1.575 |
| 45 | 37 | 45 | 1.457 | 1.772 |
| 50 | 42 | 50 | 1.654 | 1.969 |
| 56 | 48 | 56 | 1.890 | 2.205 |
| 62 | 54 | 62 | 2.126 | 2.441 |
| 68 | 60 | 68 | 2.362 | 2.677 |
| 74 | 66 | 74 | 2.598 | 2.913 |
| 80 | 72 | 80 | 2.835 | 3.150 |
| 86 | 78 | 86 | 3.071 | 3.386 |
| 92 | 84 | 92 | 3.307 | 3.622 |
| 98 | 90 | 98 | 3.543 | 3.858 |
CR=Clamping Range / PN=Part Number
Band Width :8mm (Material-AISI 430 . 304 stainless steel)| SIZE | CR:Min(mm) | CR:Max(mm) | CR:Min(inch) | CR:Max((inch) |
|---|---|---|---|---|
| 30 | 22 | 30 | 0.866 | 1.181 |
| 32 | 24 | 32 | 0.945 | 1.260 |
| 35 | 27 | 35 | 1.063 | 1.378 |
| 40 | 32 | 40 | 1.260 | 1.575 |
| 45 | 37 | 45 | 1.457 | 1.772 |
| 50 | 42 | 50 | 1.654 | 1.969 |
| 56 | 48 | 56 | 1.890 | 2.205 |
| 62 | 54 | 62 | 2.126 | 2.441 |
| 68 | 60 | 68 | 2.362 | 2.677 |
| 74 | 66 | 74 | 2.598 | 2.913 |
| 80 | 72 | 80 | 2.835 | 3.150 |
| 86 | 78 | 86 | 3.071 | 3.386 |
| 92 | 84 | 92 | 3.307 | 3.622 |
| 98 | 90 | 98 | 3.543 | 3.858 |
CR=Clamping Range / PN=Part Number
Packaging
EVEREON Adjustable ear hose clamps are available in bulk packaging, polybag packaging, and customer designed packaging. There is NO logo and brand on our regular boxes. We can provide customer barcode and private label for all packaging. Customer designed packaging are available on request.
Bulk packaging : 1000 / 500 clamps per box or customer packaging, then shipped in cartons.
Polybag packaging : each set polybags packaging are available in 2, 5, 10 clamps, or customer packaging.
Installing Tools

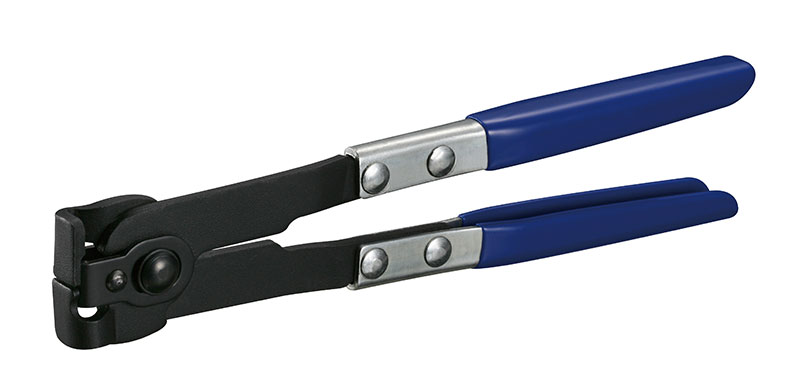

The pliers tool (PN: 80013) helps your work easily.
