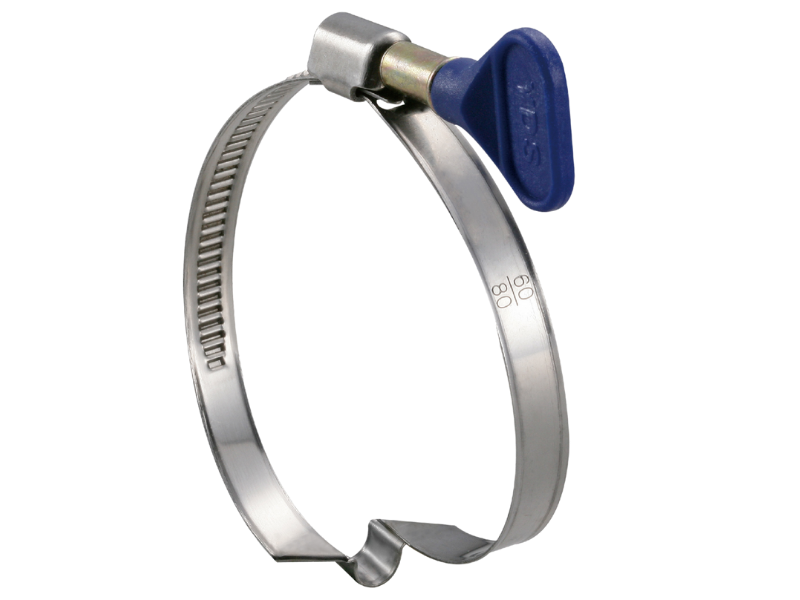

YDS bridge hose clamps are easily and quickly installed without tools. They are special designed for woodwork and dust collected pipes.
For further information or products details, please feel free to contact us.
Product Description

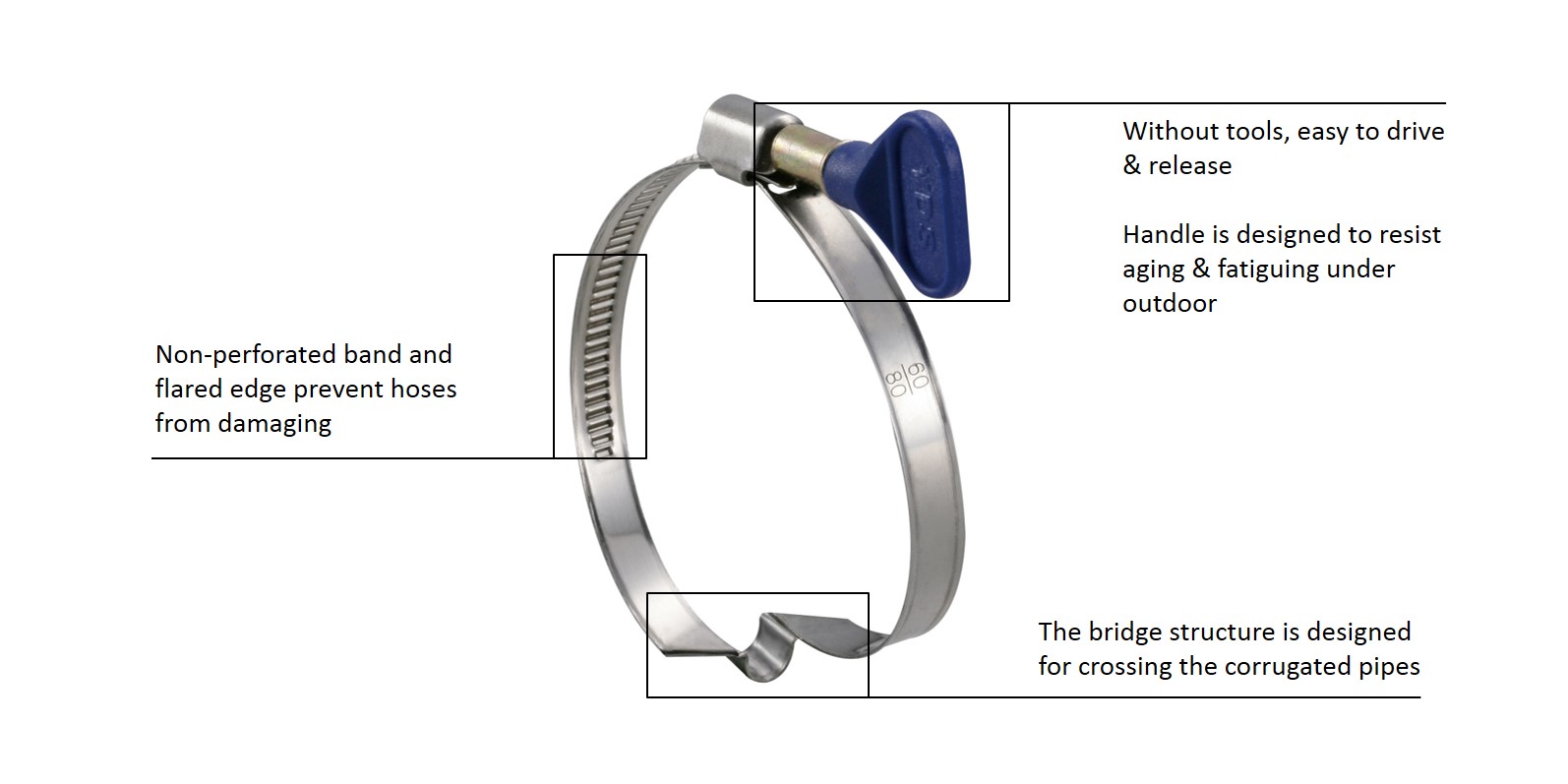

Feature
Material
| evereon Part No. | Material Type | BAND | HOUSING | SCREW | HANDLE |
|---|---|---|---|---|---|
| 19020- series | W2 (430 S.S.) | AISI 430 Stainless Steel | AISI 430 Stainless Steel | Plated Carbon Steel | - |
| 19027- series | W2 (430 S.S.) | AISI 430 Stainless Steel | AISI 430 Stainless Steel | Plated Carbon Steel | POM |
Tightening Torque
The recommended installation torque is 2.0 Nm (17 lbf-in).
Application
Wood Working
| CR : Min.(mm) | CR : Max.(mm) | CR : Min.(inch) | CR : Max.(inch) | Left Hand | Right Hand | Pipe Dia(mm) | Pipe Dia(inch) |
|---|---|---|---|---|---|---|---|
| 51 | 70 | 2 | 2-3/4 | 19020-09070L | 19020-09070R | 65 mm | 2-1/2 |
| 101 | 120 | 4 | 4-3/4 | 19020-09120L | 19020-09120R | 100 mm | 4 |
CR=Clamping Range / PN=Part Number
Butterfly Handle-Band Width : 9mm| CR : Min.(mm) | CR : Max.(mm) | CR : Min.(inch) | CR : Max.(inch) | Left Hand | Right Hand | Pipe Dia(mm) | Pipe Dia(inch) |
|---|---|---|---|---|---|---|---|
| 51 | 70 | 2 | 2-3/4 | 19027-09070L | 19027-09070R | 65 mm | 2-1/2 |
| 101 | 120 | 4 | 4-3/4 | 19027-09120L | 19027-09120R | 100 mm | 4 |
CR=Clamping Range / PN=Part Number
Packaging
YDS bridge hose clamps packages are available in bleow packaging. There is NO logo and brand on our regular boxes. We can provide customer barcode and private label for all packaging. Customer designed packaging are available on request.
Bulk packaging: 50 clamps per box for all sizes, then shipped in cartons.
Polybag packaging: each set polybags packaging are available in 5 clamps, or customer packaging.
Tag label packaging : each clamp is packed with 1 private label.
