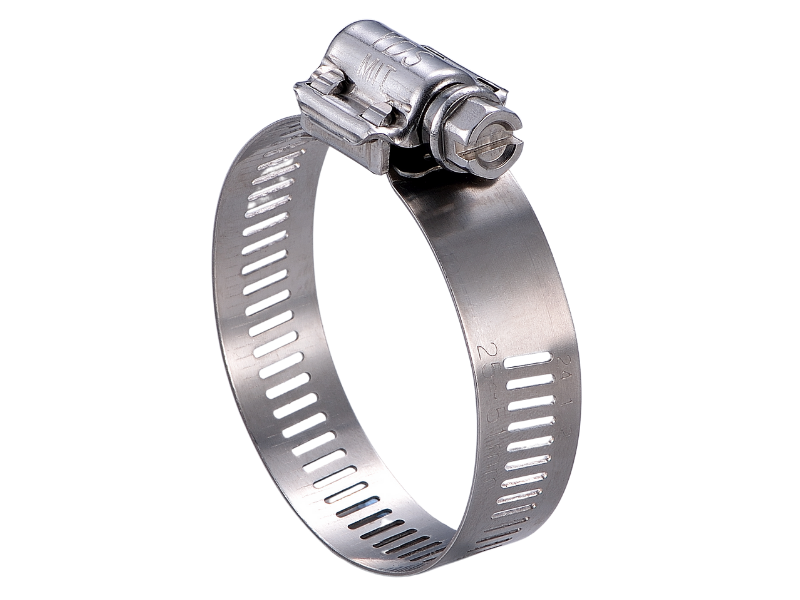

9/16” High Torque Hose Clamps

EVEREON 9/16" high torque hose clamps are the general purpose in automotive, turbo, marine and heavy duty industrial applications. Sometimes called worm gear hose clamps and American type hose clamps.

The 9/16" width punched perforated band enables clamps to install easily and hold strong. 2-piece lock housing construction provide superior engagement of screw threads to band for providing a superior tightening torque meets or exceeds 88 lbf-in. Material are stamped on the housing, and clamping range are stamped on the band. 9/16" High torque hose clamps are available in carbon steel screw and 304 S.S. screw material.

For further information or products details, please feel free to contact us.

Product Description

Under SAE J1508 type F Standard and RoHS & REACH standard.

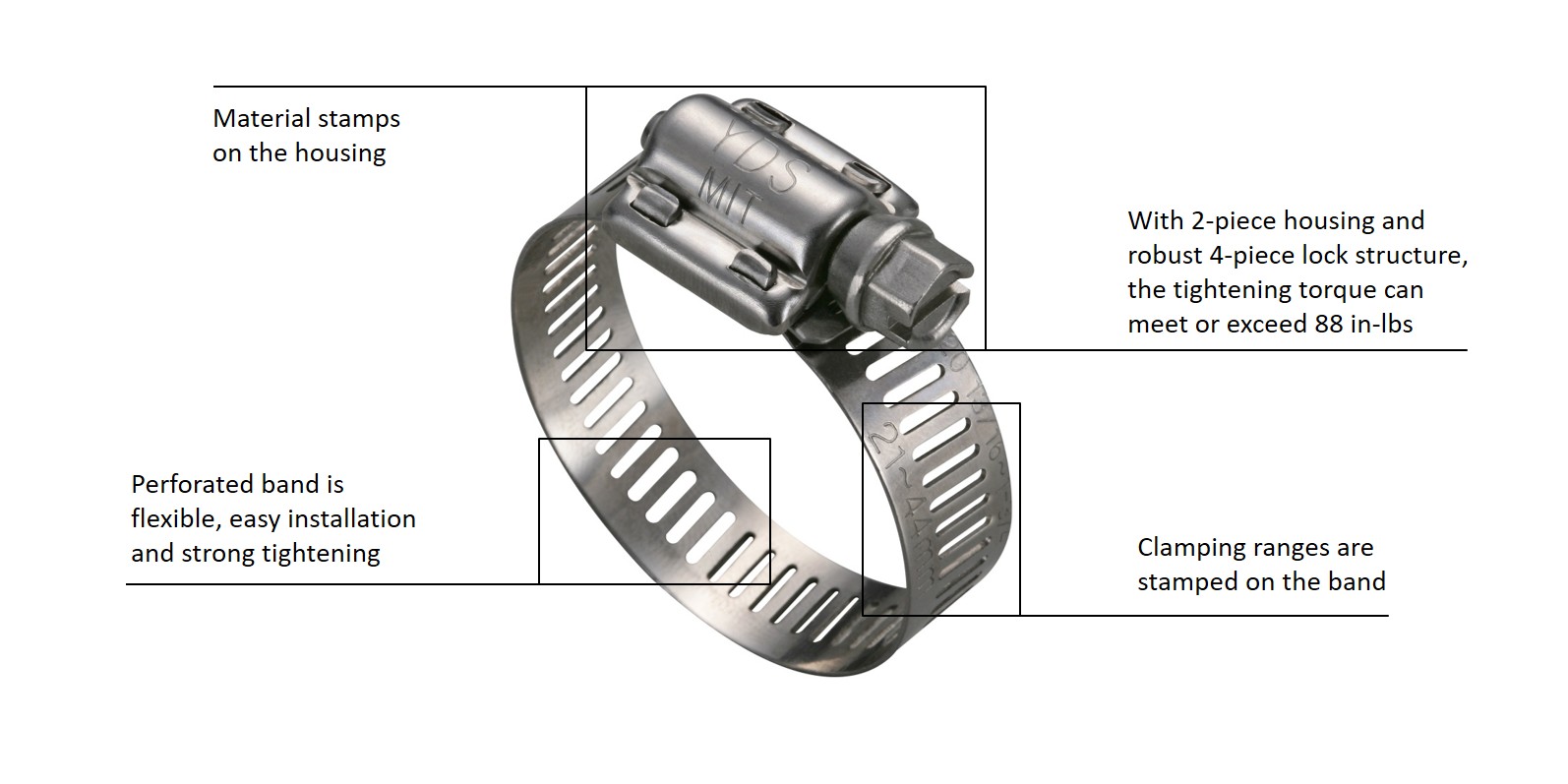

4-piece construction.
2-piece housing and robust 4-piece lock structure.
Perforated 9/16" (14.2 mm) band is flexible, easy installation and strong tightening.
Hex. head screw: 5/16” (7.9 mm)
Multi-clamping range.
Clamping ranges are stamped on the band.
Material stamps on the housing.
Usage in various industrial applications.
All 304 stainless steel hose clamps are superior corrosion resistance
Large diameter sizes are available on request

Feature

Material

evereon Part No.	Material Type	BAND	2-PART HOUSING	SCREW
26230- series	Carbon Steel Screw	AISI 304 Stainless Steel	AISI 304 Stainless Steel	Plated Carbon Steel
26240- series	All 304 S.S.	AISI 304 Stainless Steel	AISI 304 Stainless Steel	AISI 304 Stainless Steel

Tightening Torque

The recommended installation torque is 10.0 Nm (88 lbf-in) for Carbon Screw and All 304 S.S. series hose clamps.

Application

Industrial Machinery, Agriculture, Automotive, Water Plumbing, Marine, HVAC, Heavy Duty

SAE SIZE	CR : Min.(inch)	CR : Max.(inch)	CR : Min.(mm)	CR : Max.(mm)	PN:Carbon Steel Screw	PN:All 304 S.S. (W4)
12	11/16	1-1/4	17	32	26230-14032	26240-14032
16	13/16	1-1/2	21	38	26230-14038	26240-14038
20	13/16	1-3/4	21	44	26230-14044	26240-14044
24	1	2	25	51	26230-14051	26240-14051
28	1-1/4	2-1/4	32	57	26230-14057	26240-14057
32	1-1/2	2-1/2	38	63	26230-14063	26240-14063
36	1-3/4	2-3/4	44	70	26230-14070	26240-14070
40	2	3	51	76	26230-14076	26240-14076
44	2-1/4	3-1/4	57	82	26230-14082	26240-14082
48	2-1/2	3-1/2	64	89	26230-14089	26240-14089
52	2-3/4	3-3/4	70	95	26230-14095	26240-14095
56	3	4	76	102	26230-14102	26240-14102
60	3-1/4	4-1/4	82	108	26230-14108	26240-14108
64	3-1/2	4-1/2	89	114	26230-14114	26240-14114
68	3-3/4	4-3/4	95	121	26230-14121	26240-14121
72	4	5	102	127	26230-14127	26240-14127
80	4-1/2	5-1/2	114	140	26230-14140	26240-14140
88	5	6	127	152	26230-14152	26240-14152
96	5-1/2	6-1/2	140	165	26230-14165	26240-14165
104	6	7	152	178	26230-14178	26240-14178
120	7	8	178	203	26230-14203	26240-14203
136	7	9	178	229	26230-14229	26240-14229
152	2	10	51	254	26230-14254	26240-14254
188	2	12-1/4	51	311	26230-14311	26240-14311
212	11-3/4	13-3/4	298	349	26230-14349	26240-14349
248	1-3/4	13-3/4	44	406	26230-14406	26240-14406
270	15-3/8	17-3/8	391	441	26230-14441	26240-14441
312	18	20	457	508	26230-14508	26240-14508

CR=Clamping Range / PN=Part Number

Packaging

EVEREON 9/16" high torque hose clamps packages are are available in bleow packaging. There is NO logo and brand on our regular boxes. We can provide customer barcode and private label for all packaging. Customer designed packaging are available on request.

Bulk packaging : 100 clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons. Pack of 10 : 10 clamps per box, then shipped in cartons.
